INTRODUCTION
Nowadays,
computer vision has a wide range of applications in object recognition, one of
these is vehicle license plate recognition systems (LPR), which seek to
recognize license plates in a non-intrusive way; that is, they use devices
external to the car to monitor and locate the car (Weihong el al., 2020). The
device par excellence for these systems is the camera, which can acquire static
or dynamic images; cameras are sometimes enhanced with infrared technology to
reduce factors that affect detection, for example environmental conditions or
the time of day. Ideally, an LPR system should be optimized with recognition
algorithms that allow it to work in real time and under real conditions in the
field where it is applied, thus achieving an assertive and instantaneous
response to the analysis carried out in a traffic context (Valencia et al.,
2020).
Moreover, we
have new models for Artificial Intelligence (AI) that can be perceived in
different applications, such as voice recognition in vehicles (Prongnuch &
Sitjongsataporn, 2020), recognition of traffic signs (Rodríguez et al., 2020;
Calero et al., 2021), among others (Virgilio et al., 2020). As a plus,
technological advances in hardware, in conjunction with these new AI models,
have resulted in the development of new and hybrid algorithms, which seek the
solution of different problems such as lighting (Mattoo et al., 2021), angles
(Wijaya et al., 2020), real time (Benitez-Garcia et al., 2021), tracking
(López-Monroy et al., 2021), among many others (Janai et al., 2020).
In recent years,
the need to improve security in different contexts of society has led to the
development of new computer systems and equipment (Karande & Joshi, 2020).
Security through AI is an area of interest, which provides us with a completely
new dimension to the intelligent tracking and navigation industry, to include
route optimization (Díaz-Parra et al., 2020), vehicle function control
(Receveur et al., 2020) and theft reduction (Prasad et al., 2020), among others
(Martínez-Cruz et al., 2021).
In Vijayalakshmi
et al. (2021) propose a model for vehicle identification and tracking, based on
the global positioning system (GPS). For this case, the GPS support device
moves continuously with the vehicle and will calculate the coordinates of each
position.
In the same way,
Dang et al. (2021) proposes security systems against possible theft. In fact,
vehicle manufacturing companies are incorporating different methods to provide
better security mechanisms. In particular, vehicle safety can be carried out by
implementing GPS and GSM (Global System for Mobile Communication) technologies.
Additionally, automatic features have been incorporated to slow down vehicles
in school or hospital zones (Sathiskumar et al., 2020; Zade et al., 2018).
License plate
recognition is the system where computer vision technology identifies the
license plate number from an image without human intervention (Xiao et al.,
2020). Design for this type of system is not an easy task, due to the different
styles and characteristics of license plates. Some of the most important
characteristics to consider in the recognition and detection of the numbers and
letters on license plates include: lighting, quality, angle and the style of
the typeface font and numbers on the license plate (Asif et al., 2017).
Automatic
vehicle identification has become increasingly important for many applications;
for example, parking fees (Farag et al., 2019), payment of tolls (Ahmed et al.,
2019), traffic surveillance (Gupta et al., 2020), ticketing (Blythe, 2004),
access control (Wijnhoven et al., 2011) , among others. A license plate is a
unique feature by which to identify each individual vehicle. Automatic vehicle
license plate recognition, as a research area has already been extensively
studied, over several decades (Shashirangana et al., 2020).
Although
significant progress has been made in license plate recognition techniques
during the last decade, it is still a challenging task to recognize license
plates from complex images, as a profficient system should function effectively
under a variety of conditions, such as on a sunny day or at night, or with
different colors and complex backgrounds. Selmi, et al. (2020) indicated that
Automatic License Plate Detection and Recognition (ALPR) is employed to make
detection and recognition processes more robust and efficient in very
challenging environments, necessitating further investigation due to some
limitations such as: integrity of numbering systems in countries, where colors,
languages, sizes and fonts vary.
METHODOLOGY
The process for
the automatic recognition of license plates begins with the acquisition of the
image from a scene in three dimensions; this image is then processed to improve
its quality and eliminate any possible imperfections; the next step is to
separate the object of interest from the background, followed by the extraction
of the characteristics that describe the object (color, texture and geometry).
In this
investigation, we undertake a comparison of intelligent algorithms for license
plate recognition. The aim is to determine which of these algorithms represents
the best alternative for achieving optimal identification of Mexico City number
plates.

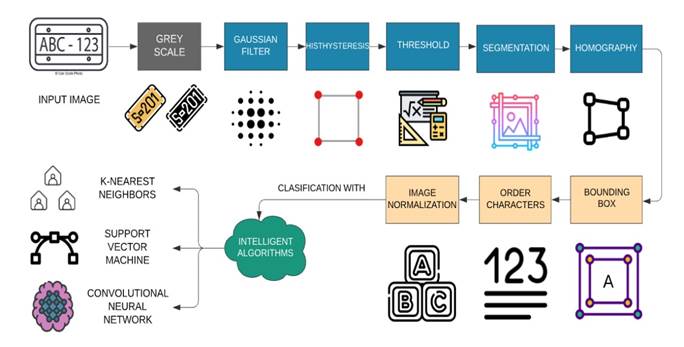

Our solution
using a ten-phase model is shown in Figure 1:
CONCLUSIONS
The analysis of large
quantities of data based on pattern recognition and learning algorithms have
helped enormously and opened the door to new possibilities. However, this is
just the tip of the iceberg; the tendency is moving towards artificial and
autonomous intelligent systems that are continually learning from the data, in
order to make optimal analytical decisions.
Despite the fact that the
KNN algorithm is very tolerant to noise, SVM has the highest success rate in
terms of detecting Mexico City license plates, with 84% effectiveness; the
margin of error for one hundred and fifty-three cases, apparently indicated only
one letter incorrectly, meaning five characters were correctly identified and
that the letter which was most often confused with the classifier was the
letter "T" with number "1". Thus future work will involve
evaluating different computer vision techniques, together with a variety of
neural networks that employ more complex images.
